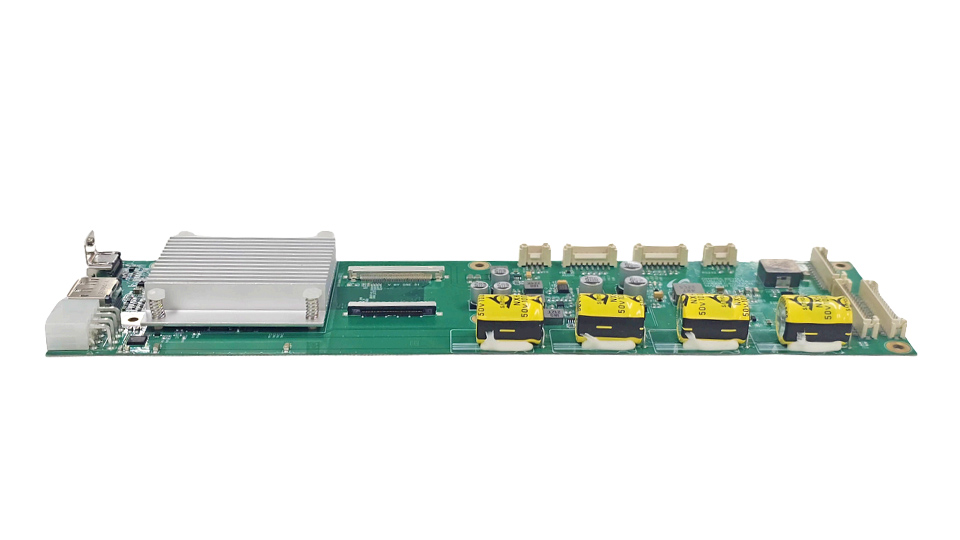

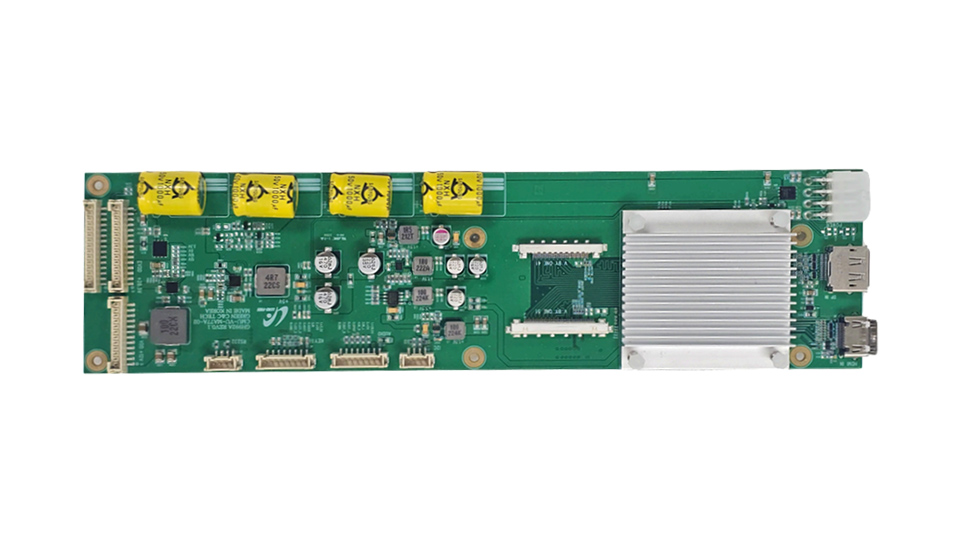

Display Controller Board
Matching up a quality controller board with your LCD display, while staying within your budget, can be a difficult task. As an experienced partner in the LCD display field, ICS Components offers a full range of driver board options to choose from. Whether you have strict noise requirements, multiple inputs (Analog RGB, NTSC/PAL Composite Video, S-Video, DVI, etc.), uncommon resolutions, panel enhancements that the board needs to work with, or just plain want something that works with a new panel that you are designing into your product, we are here to help. We can Meet Any Display.
VC : Value for Customer Controller Board
| Model No. | Applications | |||
|---|---|---|---|---|
| VCB1300BD | Monitor/Game High end Board | |||
| VCB1301 | Monitor/Game High end Board | |||
| VCB1320 | Monitor/Industrial Middle end Board | |||
| VCB1324 | Monitor/Game Low end Board | |||
| VCB1325 | Monitor/Game Low end Board | |||
| VCB1331 | Monitor/Game Middle end Board | |||
| VCB1332 | Monitor/Game Middle end Board | |||
| VCB1340 | Monitor/DID/Industrial High Resolution Professional Board | |||
| VCB1340V | Advanced UHD Board (e-DP1.1) | |||
| VCB1340F | Advanced UHD Board (e-DP1.2a) | |||
| VCB1360 | Monitor/DID/Industrial High Resolution Professional Board | |||
| VCB1360TF | Universal UHD Board | |||
| VCB1360QF | 24V Universal UHD Board | |||
| VCB1370 | High-end UHD Board | |||
| VCB1400 | Monitor/Game Low end Board | |||
| VCB1404 | RoHS compliant | |||
| VCB1422 | RoHS compliant | |||
| VCB1423 | RoHS compliant | |||
| VCB1504L | Monitor/Gaming High end Board | |||
| VCB1520 | Industrial / Medical / Military High end Board | |||
| VCB1521 | IIndustrial / Medical / Military High end Board | |||
| VCB1531 | CVBS / 3Gb / HD/SD-SDI(AHD) Monitor Board |
VCB1300BD
RoHS compliant
| Model No. | VCB1300BD |
|---|---|
| Main Chipset | REALTEK RTD2483BD |
| Input / Output Resolution | XGA to WUXGA(1920x1200) - YPbPr: 480P ~ 1080P |
| Input Interface | RGB, DVI-D, HDMI, AUDIO In - Option: Component, SPDIF |
| Output Interface | LVDS (6/8bit) 2ch |
| Speak Out | 3W x 2ch(4ohm), 10W x 2ch (Optional) |
| Panel Power | 3.3V/5V/12V/15V/18V |
| Power Input | 12V/DC15V/18V/24V DC, External SMPS available |
| Compatibility | VESA Standard, Mac |
| User Control(OSD) | OSD Menu, 5 Languages, AUTO adjust-configure, 7Keys, 1 LED Indicator |
| Dimension (W x L x H) | Controller Board: 150 x 102 x 15.4 mm OSD Board (VOB1079D): 150 x 16 x 8.7mm |
| Plug & Play | DDC 2B, VESA DPMS |
| Special Features | Remote / RS232 Control DDC/CI Support |
| Applications | Monitor/Game High end Board |
VCB1301 NEW
RoHS compliant
- VCB1301D, VMT-0172: For 8bit
- VCB1301TD, VMT-0172: For 10bit
| Model No. | VCB1301 |
|---|---|
| Main Chipset | REALTEK RTD2483BD |
| Input / Output Resolution | XGA to WUXGA(1920x1200) |
| Input Interface | RGB, HDMI×2, AUDIO-In/Out, RS232 |
| Output Interface | LVDS (6/8bit) 1ch/2ch |
| Speak Out | 3W(4ohm) x 2ch, 10W(8ohm) x 2ch -Optional |
| Panel Power | 3.3V/5V/12V/15V/18V |
| Power Input | 12V/15V/18V/24V DC, External SMPS available |
| Compatibility | VESA Standard, Mac |
| User Control(OSD) | OSD Menu, 5 Languages, AUTO adjust-configure, 7Keys, 1 LED Indicator |
| Dimension (W x L x H) | Controller Board: 150 x 102 x 15.4 mm OSD Board (VOB1079D): 150 x 16 x 8.7mm AV SUB Board (VSB1300): 85 x 21.7 x 19.5 mm |
| Plug & Play | DDC 2B, VESA DPMS |
| Option | Remote / RS232 Control |
| Applications | Monitor/Game High end Board |
VCB1320
RoHS compliant
| Model No. | VCB1320 |
|---|---|
| Main Chipset | REALTEK RTD2483BD |
| Input / Output Resolution | XGA to WUXGA(1920x1200) |
| Input Interface | RGB, DVI-D, HDMI, AUDIO In |
| Output Interface | LVDS (6/8bit) 2ch |
| Speak Out | 3W x 2ch(4ohm) |
| Panel Power | 3.3V/5V/12V/15V/18V |
| Power Input | 12V/DC |
| Compatibility | VESA Standard, Mac |
| User Control(OSD) | OSD Menu, 5 Languages, AUTO adjust-configure, 7Keys or 5Keys, 2 LED Indicator |
| Dimension (W x L x H) | Controller Board: 123 x 100 x 15.4 mm OSD Board (VOB1079D_7Key): 150 x 16 x 8.7mm OSD Board (NOB005P_5Key): 115 x 20 x 8.9mm |
| Plug & Play | DDC 2B, VESA DPMS |
| Option | RS232/Remote Control |
| Special Features | All supporting LCD Panel → Panel Type is selected by jumper setting illuminance/Temperature Sensor(I2C Type), FAN Control Blue Light, DDC/CI Support PC Power Control 5V Power Output |
| Applications | Monitor/Industrial Middle end Board |
VCB1324
RoHS compliant
| Model No. | VCB1324 |
|---|---|
| Main Chipset | REALTEK RTD2483BD |
| Input / Output Resolution | VGA to WUXGA(1920x1200) |
| Input Interface | DVI-D, HDMI |
| Output Interface | LVDS (6bit) 1ch |
| Panel Power | 3.3V/5V/12V |
| Power Input | 12V DC |
| Compatibility | VESA Standard, Mac |
| User Control(OSD) | OSD Menu, AUTO adjust-configure, 5Keys, 2 LED Indicator |
| Dimension(W x H x D) | Main Board : 90 x 60 x 15.4 mm OSD Board : 115 x 20 x 8.7mm |
| Plug & Play | DDC 2B, VESA DPMS |
| Option | |
| Special Features | G101EVN01.0 Panel Exclusive |
| Applications | Monitor/Game Low end Board |
VCB1325 NEW
RoHS compliant
| Model No. | VCB1325 |
|---|---|
| Main Chipset | REALTEK RTD2483BD |
| Input / Output Resolution | VGA to WUXGA(1920x1200) |
| Input Interface | DVI-D, HDMI |
| Output Interface | LVDS (6/8bit) 1ch/2ch |
| Panel Power | 3.3V/5V/12V |
| Power Input | 12V DC |
| Compatibility | VESA Standard, Mac |
| User Control(OSD) | OSD Menu, AUTO adjust-configure, 7Keys, 2 LED Indicator |
| Dimension(W x H x D) | Main Board : 100 x 60 x 15.4 mm OSD Board (VOB1079D): 150 x 16 x 8.7mm |
| Plug & Play | DDC 2B, VESA DPMS |
| Special Features | Small Size |
| Applications | Monitor/Game Low end Board |
VCB1331
RoHS compliant
| Model No. | VCB1331 |
|---|---|
| Main Chipset | REALTEK RTD2525A |
| Input / Output Resolution | VGA to WUXGA(1920x1200) |
| Input Interface | RGB, DVI-D, DP, AUDIO In |
| Output Interface | LVDS (6/8bit) 1ch/2ch |
| Panel Power | 3.3V/5V/12V |
| AUDIO | 2W x 2ch(4ohm) |
| Power Input | 12V/24V DC, External SMPS available |
| Compatibility | VESA Standard, Mac |
| User Control(OSD) | OSD Menu, AUTO adjust-configure, 7Keys, 2 LED Indicator |
| Dimension (W x L x H) | Controller Board: 130 x 80 x 15.4 mm OSD Board: 150 x 16 x 8.7mm |
| Plug & Play | DDC 2B, VESA DPMS |
| Option | |
| Special Features | Ultra Low Power RS232&I2C&GPIO Support Remote Control (VRC-1340)Support |
| Applications | Monitor/Game Middle end Board |
VCB1332
RoHS compliant
| Model No. | VCB1332 |
|---|---|
| Main Chipset | REALTEK RTD2525A |
| Input / Output Resolution | VGA to WUXGA(1920x1200) |
| Input Interface | RGB, HDMI, DP, AUDIO In |
| Output Interface | LVDS (6/8bit) 1ch/2ch |
| Panel Power | 3.3V/5V/12V |
| AUDIO | 2W x 2ch(4ohm) |
| Power Input | 12V/24V DC, External SMPS available |
| Compatibility | VESA Standard, Mac |
| User Control(OSD) | OSD Menu, AUTO adjust-configure, 7Keys, 2 LED Indicator |
| Dimension(W x L x H) | Controller Board: 130 x 80 x 15.4 mm OSD Board: 150 x 16 x 8.7mm |
| Plug & Play | DDC 2B, VESA DPMS |
| Option | |
| Special Features | Ultra Low Power RS232&I2C&GPIO Support Remote Control (VRC-1340)Support |
| Applications | Monitor/Game Middle end Board |
VCB1340
RoHS compliant
| Model No. | VCB1340 |
|---|---|
| Main Chipset | REALTEK RTD2796 |
| Input / Output Resolution | UHD(3840x2160, 4096x2160) |
| Input Interface | HDMI_1.4(4K2K 30Hz/MHL) 1Port, HDMI_1.4(4K2K 30Hz) 2Port, HDMI_2.0(4K2K 60Hz)1Port, DP(4K2K 60Hz) 1Port, AUDIO In |
| Output Interface | LVDS / V-by-one / e-DP1.1(HBR1) / e-DP1.2(HBR2), DP (Daisy Chain) - Option Available 4K2K 120Hz Panel support by FRC Board - Option Available |
| Speak Out | 20Wx2ch(8ohm)-24V or 8Wx2ch(8ohm)-12V/SMPS |
| Panel Power | 5V / 10V / 12V |
| Power Input | 12V/24V DC, External SMPS available |
| Compatibility | VESA Standard, Mac |
| User Control(OSD) | OSD Menu, 2 Languages, AUTO adjust-configure, 7Keys, 1 LED Indicator |
| Dimension (W x L x H) | Controller Board: 200 x 130 x 16mm OSD Board (VOB1079D): 150 x 16 x 8.7mm |
| Plug & Play | DDC 2B, VESA DPMS |
| Special Features | All input supporting PIP/4P(4Windows)/PBP(L/R,Top/Bottom) DP MST(Multi Stream, up to FHD 4EA) or Daisy chain Output Free Sync (30hz ~ 144hz) OSD/Display Rotation, Low Blue Light Function Over driver/Over scan/6color/color effect Function Gamma/Light sensor/Response time Control PCM(Precise color management) Remote Control UART for RS232 Control (Wafer Ready) DDC/CI Support |
| Applications | Monitor/DID/Industrial High Resolution Professional Board |
VCB1340V NEW
Advanced UHD Board (e-DP1.1)
| Model No. | VCB1340V |
|---|---|
| Main Chipset | REALTEK RTD2796 |
| Input / Output Resolution | UHD(3840x2160, 4096x2160) |
| Input Interface | HDMI_1.4(4K2K 30Hz/MHL) 1Port, HDMI_1.4(4K2K 30Hz) 2Port, HDMI_2.0(4K2K 60Hz)1Port, DP(4K2K 60Hz) 1Port, AUDIO In |
| Output Interface | LVDS / V-by-one / e-DP1.1(HBR1) DP (Daisy Chain) - Option Available 4K2K 120Hz Panel support by FRC Board - Option Available |
| Speak Out | 20Wx2ch(8ohm)-24V or 8Wx2ch(8ohm)-12V/SMPS |
| Panel Power | 5V / 10V / 12V |
| Power Input | 12V/24V DC, External SMPS available |
| Compatibility | VESA Standard, Mac |
| User Control(OSD) | OSD Menu, 2 Languages, AUTO adjust-configure, 7Keys, 1 LED Indicator |
| Dimension (W x L x H) | Controller Board: 200 x 130 x 16mm OSD Board (VOB1079D): 150 x 16 x 8.7mm |
| Plug & Play | DDC 2B, VESA DPMS |
| Special Features | All input supporting PIP/4P(4Windows)/PBP(L/R,Top/Bottom) DP MST(Multi Stream, up to FHD 4EA) or Daisy chain Output Free Sync (30hz ~ 144hz) OSD/Display Rotation, Low Blue Light Function Over driver/Over scan/6color/color effect Function Gamma/Light sensor/Response time Control PCM(Precise color management) Remote Control UART for RS232 Control (Wafer Ready) DDC/CI Support |
VCB1340F NEW
RoHS compliant
| Model No. | VCB1340F |
|---|---|
| Main Chipset | REALTEK RTD2796 |
| Input / Output Resolution | UHD(3840x2160, 4096x2160) |
| Input Interface | HDMI_1.4(4K2K 30Hz/MHL) 1Port, HDMI_1.4(4K2K 30Hz) 2Port, HDMI_2.0(4K2K 60Hz)1Port, DP(4K2K 60Hz) 1Port, AUDIO In |
| Output Interface | LVDS / V-by-one / e-DP1.1(HBR1) / e-DP1.2a(HBR2), DP (Daisy Chain) - Option Available 4K2K 120Hz Panel support by FRC Board - Option Available |
| Speak Out | 20Wx2ch(8ohm)-24V or 8Wx2ch(8ohm)-12V/SMPS |
| Panel Power | 5V / 10V / 12V |
| Power Input | 12V/24V DC, External SMPS available |
| Compatibility | VESA Standard, Mac |
| User Control(OSD) | OSD Menu, 2 Languages, AUTO adjust-configure, 7Keys, 1 LED Indicator |
| Dimension (W x L x H) | Controller Board: 200 x 130 x 16mm OSD Board (VOB1079D): 150 x 16 x 8.7mm |
| Plug & Play | DDC 2B, VESA DPMS |
| Special Features | All input supporting PIP/4P(4Windows)/PBP(L/R,Top/Bottom) DP MST(Multi Stream, up to FHD 4EA) or Daisy chain Output Free Sync (30hz ~ 144hz) OSD/Display Rotation, Low Blue Light Function Over driver/Over scan/6color/color effect Function Gamma/Light sensor/Response time Control PCM(Precise color management) Remote Control UART for RS232 Control (Wafer Ready) DDC/CI Support |

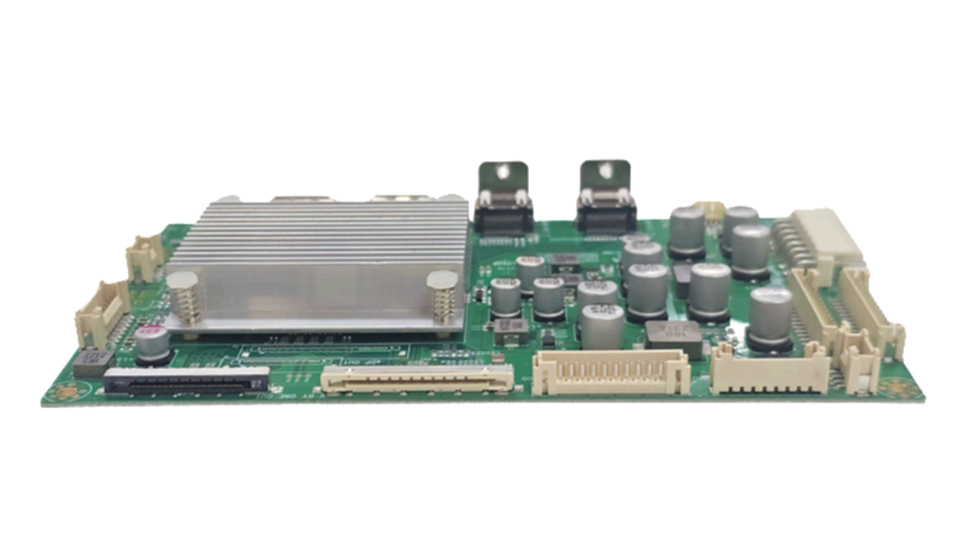

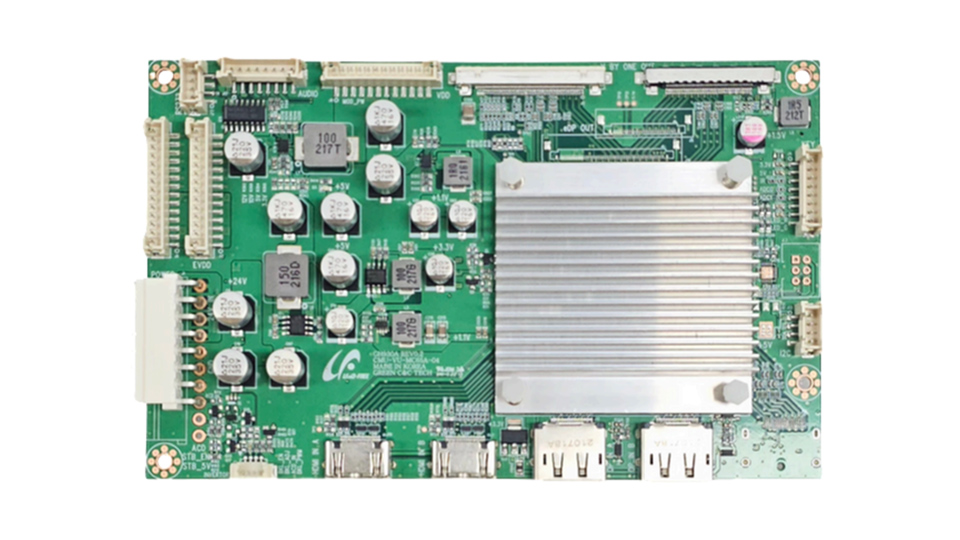

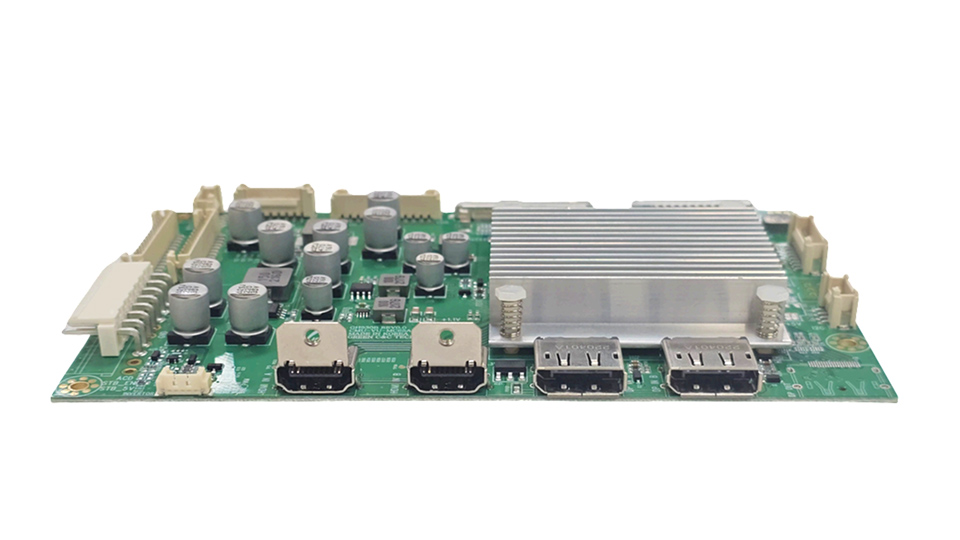

VCB1360
RoHS compliant
| Model No. | VCB1360 |
|---|---|
| Main Chipset | REALTEK RTD2795-xxx |
| Input / Output Resolution | UHD(3840x2160, 4096x2160) |
| Input Interface | HDMI_2.0(4K2K 60Hz)2Port -HDCP2.2, DP_1.2(4K2K 60Hz) 2Port -HDCP2.2, Audio Out |
| Output Interface | V-by-one / e-DP1.1(HBR1) / e-DP1.2(HBR2), DP (Daisy Chain) - Option Available 4K2K 120Hz Panel support by FRC Board - Option Available |
| Speak Out | 20Wx2ch(8ohm)-24V or 8Wx2ch(8ohm)-12V/SMPS |
| Panel Power | 10V / 12V |
| Power Input | 12V/24V DC, External SMPS available |
| Compatibility | VESA Standard, Mac |
| User Control(OSD) | OSD Menu, 3 Languages , 7Keys, 1 LED Indicator |
| Dimension (W x L x H) | Controller Board: 155 x 100 x 16mm OSD Board (VOB1079D): 150 x 16 x 8.7mm |
| Plug & Play | DDC 2B, VESA DPMS |
| Special Features | HDR (UF/UV/UD) / Free Sync (30hz ~ 144hz) Support DP MST(Multi Stream, up to FHD 4EA) or Daisy chain Output →HDR/ MST/Daisy Chain optional supports according to RTD2795-xxx series HDCP2.2 Support by all Input source, Display Rotate : L/R Mirror, U/D Mirror, / 180º OSD Rotate : 90º / 180º/ 270º Over driver / Over scan / Disp Latency / Low Blue Light Gamma/Response time/Light Sensor /Temperature Control PCM(Precise color management), DDC/CI Function Remote Control, UART for RS232 Control (Wafer Ready) DDC/CI Support |
| Applications | Monitor/DID/Industrial High Resolution Professional Board |

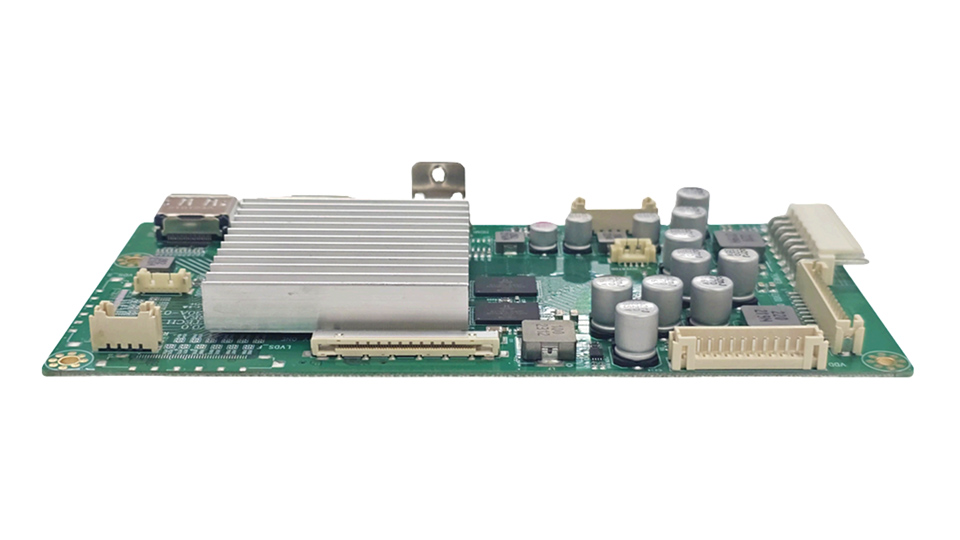

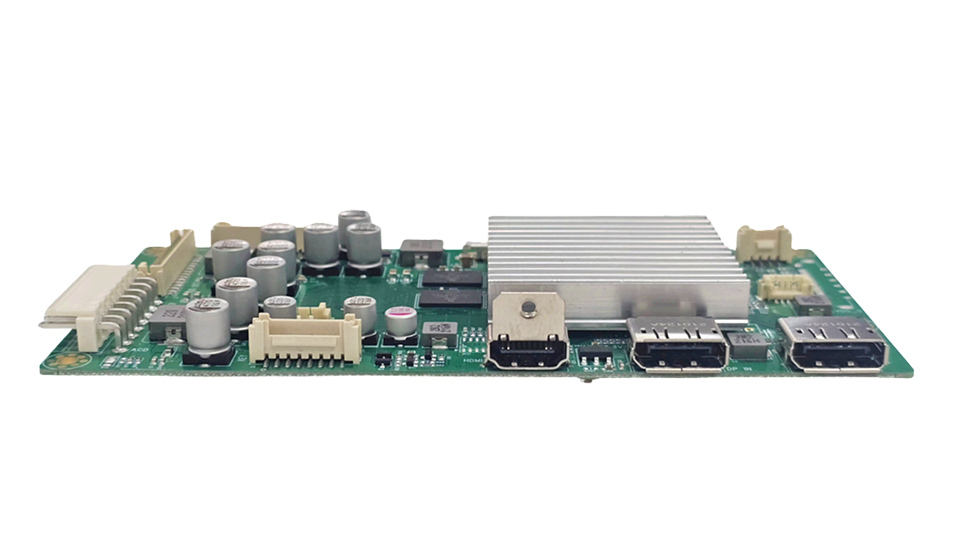

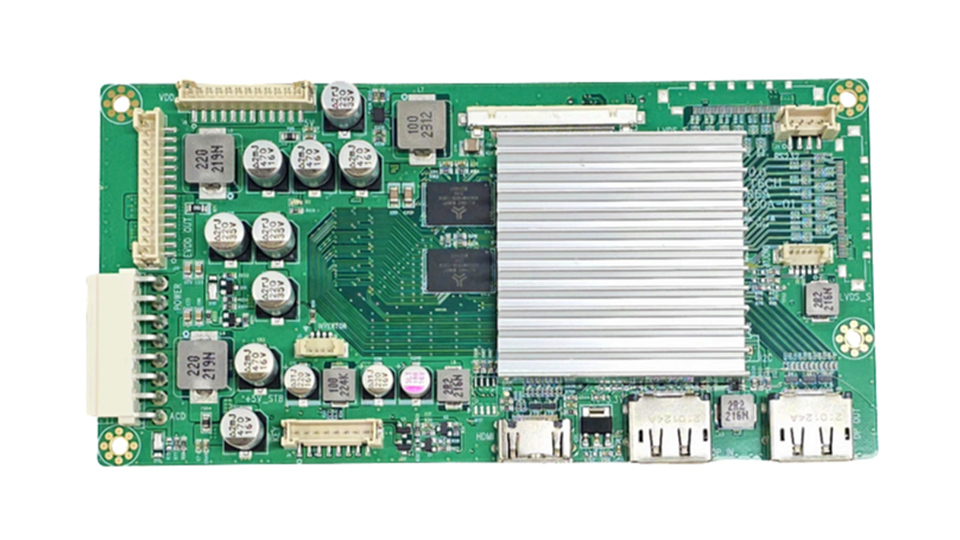

VCB1360TF NEW
Universal UHD Board
| Model No. | VCB1360TF |
|---|---|
| Main Chipset | REALTEK RTD2795T-CG |
| Input / Output Resolution | UHD(3840x2160, 4096x2160) |
| Input Interface | HDMI_2.0(4K2K 60Hz)2Port -HDCP2.2, DP_1.2(4K2K 60Hz) 2Port -HDCP2.2, Audio Out |
| Output Interface | V-by-one / e-DP1.1(HBR1) / e-DP1.2(HBR2), DP (Daisy Chain) - Option Available 4K2K 120Hz Panel support by FRC Board - Option Available |
| Speak Out | 20Wx2ch(8ohm)-24V or 8Wx2ch(8ohm)-12V/SMPS |
| Panel Power | 10V / 12V |
| Power Input | 12V/24V DC, External SMPS available |
| Compatibility | VESA Standard, Mac |
| User Control(OSD) | OSD Menu, 3 Languages, 7Keys, 1 LED Indicator |
| Dimension (W x L x H) | Controller Board: 155 x 100 x 16mm OSD Board (VOB1079D): 150 x 16 x 8.7mm |
| Plug & Play | DDC 2B, VESA DPMS |
| Special Features | HDR (UF/UV/UD) / Free Sync (30hz ~ 144hz) Support HDCP2.2 Support by all Input source, Display Rotate: L/R Mirror, U/D Mirror, / 180º OSD Rotate: 90º / 180º / 270º Over driver / Over scan / Disp Latency / Low Blue Light Gamma/Response time / Light Sensor / Temperature Control PCM(Precise color management), DDC/CI Function Remote Control, UART for RS232 Control (Wafer Ready) DDC/CI Support DP connector 4K2K@60Hz 2Port / Daisy chain 1Port DP MST (Multi Stream Transport, up to FHD 4 EA) or Daisy chain Output |
| Applications | Monitor/DID/Industrial High Resolution Professional Board |
VCB1360QF NEW
24V Universal UHD Board
| Model No. | VCB1360QF |
|---|---|
| Main Chipset | REALTEK RTD2795QT-CG |
| Input / Output Resolution | UHD(3840x2160, 4096x2160) |
| Input Interface | HDMI_2.0(4K2K 60Hz)2Port -HDCP2.2, DP_1.2(4K2K 60Hz) 2Port -HDCP2.2, Audio Out |
| Output Interface | V-by-one / e-DP1.1(HBR1) / e-DP1.2(HBR2), DP (Daisy Chain) - Option Available 4K2K 120Hz Panel support by FRC Board - Option Available |
| Speak Out | 20Wx2ch(8ohm)-24V or 8Wx2ch(8ohm)-12V/SMPS |
| Panel Power | 10V / 12V |
| Power Input | 12V/24V DC, External SMPS available |
| Compatibility | VESA Standard, Mac |
| User Control(OSD) | OSD Menu, 3 Languages, 7Keys, 1 LED Indicator |
| Dimension (W x L x H) | Controller Board: 155 x 100 x 16mm OSD Board (VOB1079D): 150 x 16 x 8.7mm |
| Plug & Play | DDC 2B, VESA DPMS |
| Special Features | HDR (UF/UV/UD) / Free Sync (30hz ~ 144hz) Support (Option) HDCP2.2 Support by all Input source, Display Rotate: L/R Mirror, U/D Mirror, / 180º OSD Rotate: 90º / 180º/ 270º Over driver / Over scan / Disp Latency / Low Blue Light Gamma/Response time/Light Sensor /Temperature Control PCM (Precise color management), DDC/CI Function Remote Control, UART for RS232 Control (Wafer Ready) DDC/CI Support DP connector 4K2K@60Hz 2Port DP Daisy Chain (Clone Only) - Option- |
| Applications | Monitor/DID/Industrial High Resolution Professional Board |

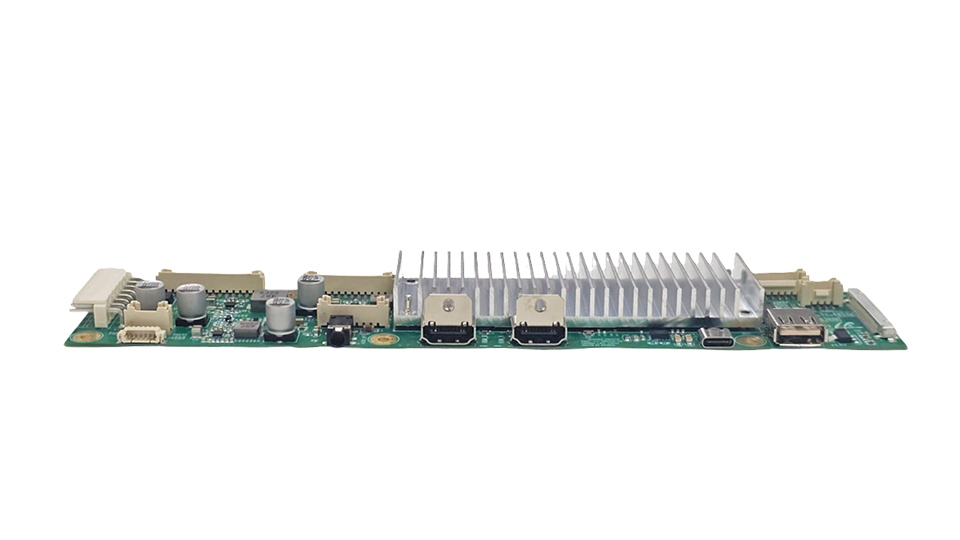

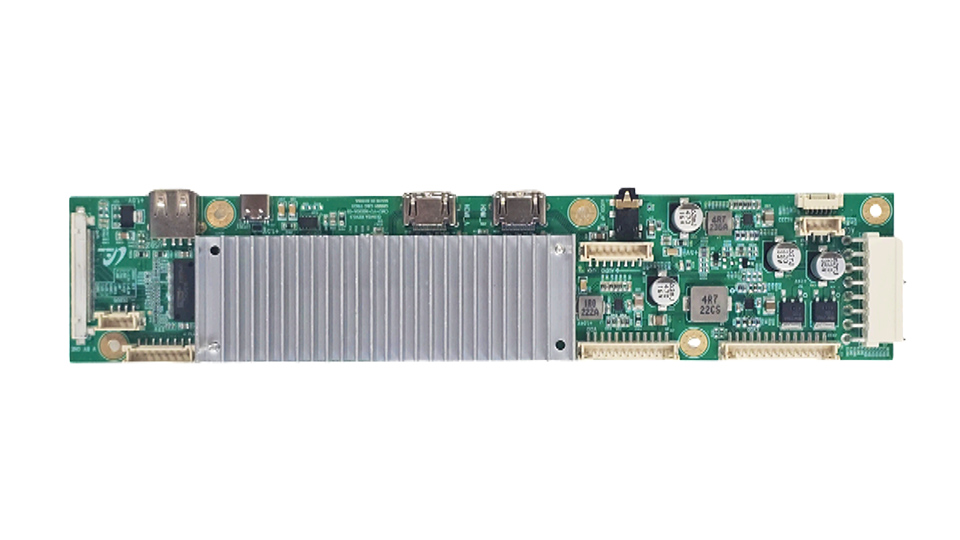

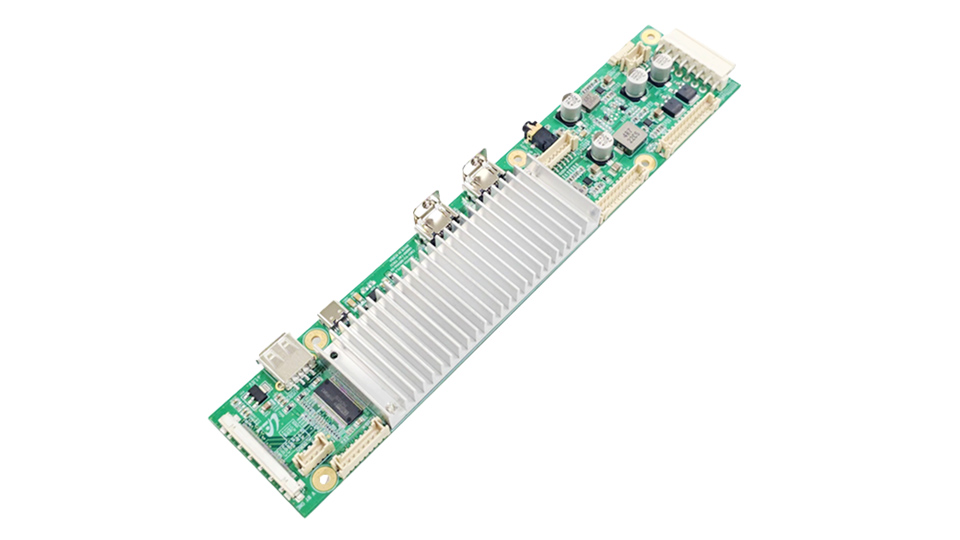

VCB1370 NEW
RoHS compliant
| Model No. | VCB1370 |
|---|---|
| Main Chipset | REALTEK RTD2798PM |
| Input / Output Resolution | UHD(3840x2160, 4096x2160) |
| Input Interface | HDMI_2.0(4K2K 60Hz) 2Port, DP(4K2K 60Hz) 1Port, USB-C (4K2K 60Hz) 1Port, USB3.0-B 1Port(to PC), USB3.0-A 2Port (to mouse, keyboard and functions), Phone Jack (For White balance Calibration) |
| Output Interface | V-by-one / e-DP1.1(HBR1) / e-DP1.2(HBR2), HDMI (Daisy Chain) 1Port 4K2K 120Hz Panel support by FRC Board - Option Available |
| Speak Out | No support |
| Panel Power | 5V / 10V / 12V |
| Power Input | 12V/24V DC, External SMPS available, USB-C(PD Power of 65W) |
| Compatibility | VESA Standard, Mac |
| User Control(OSD) | OSD Menu, 2 Languages, AUTO adjust-configure, 7Keys, 1 LED Indicator |
| Dimension (W x L x H) | Controller Board: 200 x 100 x 16mm OSD Board (VOB1079D): 150 x 16 x 8.7mm |
| Plug & Play | DDC 2B, VESA DPMS |
| Special Features | HDR (High Dynamic Range) Function, Free Sync (30hz ~ 144hz) Support OSD Rotation(0°/90°//270°) / Display Mirror(180°) Function OGC (On-Line Gamma Calibration) / OCC (On-Line Color Calibration) Over Driver / Over Scan / 6color / Color Effect Function Gamma / Response time / Light Sensor / Temperature Control Low Blue Light Function, PCM (Precise color management) Remote Control, UART for RS232 Control (Wafer Ready) DDC/CI Support |
| Applications | Monitor/DID/Industrial High Resolution Professional Board |
VCB1400
RoHS compliant
| Model No. | VCB1400 | |
|---|---|---|
| Main Chipset | REALTEK RTD2281DW | |
| Input / Output Resolution | VGA(640x480) to WUXGA (1920x1200) | |
| Input Interface | RGB, DVI-D | |
| Output Interface | LVDS (6/8bit) 1ch/2ch | |
| Panel Power | 3.3V/5V/12V | |
| Power Input | 12V DC | |
| Compatibility | VESA Standard, Mac | |
| User Control(OSD) | OSD Menu, 2 Languages, AUTO adjust-configure, 5Keys or 7Keys, 1 LED Indicator | |
| Dimension (W x L x H) | Controller Board: 90 x 66 x 14mm OSD Board (NOB005P): 115 x 20 x 8.9mm OSD Board (VOB1079D): 150 x 16 x 8.7mm-Option |
|
| Plug & Play | DDC 2B, VESA DPMS | |
| Option | RS232 Control. Illuminance(Light) Sensor(ADC Type) | |
| Special Features | Ultra Low Power OSD Rotation(90° Only) illuminance/Temperature Sensor(I2C Type) DDC/CI Support | |
| Applications | Monitor/Game Low end Board |
VCB1404 NEW
RoHS compliant
| Model No. | VCB1404 |
|---|---|
| Main Chipset | REALTEK RTD2281CL-CG |
| Input / Output Resolution | VGA (640x480) to WUXGA (1920x1200) |
| Input Interface | RGB, HDMI Jack (DVI-D) |
| Output Interface | LVDS (6/8bit) 1ch/2ch |
| Panel Power | 3.3V/5V/12V |
| Power Input | 12V DC |
| Compatibility | VESA Standard, Mac |
| User Control(OSD) | OSD Menu, 2 Languages, AUTO adjust-configure, 5Keys(7Keys), 1 LED Indicator |
| Dimension (W x L x H) | Controller Board: 90 x 66 x 14mm OSD Board (NOB005P): 115 x 20 x 8.9mm - Recommend OSD Board (VOB1079D): 150 x 16 x 8.7mm-Option |
| Plug & Play | DDC 2B, VESA DPMS |
| Option | RS232 Control. Illuminance(Light) Sensor(ADC Type) |
| Special Features | Ultra Low Power OSD Rotation (270° Only) for DID Solution RS232&I2C&GPIO Control Support illuminance/Temperature Sensor (I2C Type) DDC/CI Function Support Remote control |
| Applications | Monitor/Game Low end Board |
VCB1422 NEW
RoHS compliant
| Model No. | VCB1422 |
|---|---|
| Main Chipset | REALTEK RTD2556QR |
| Input / Output Resolution | VGA (640x480) to WUXGA (1920x1200) |
| Input Interface | HDMI, DP, RGB, AUDIO-in |
| Output Interface | e-DP1.1(HBR1) or LVDS 2ch |
| Panel Power | 3.3V/5V/12V |
| AUDIO | 3W(4ohm) x 2ch |
| Power Input | 12V/24V DC, External SMPS available →Input power can be selected by jumper setting |
| Compatibility | VESA Standard, Mac |
| User Control(OSD) | OSD Menu, AUTO adjust-configure, 7Keys, 2 LED Indicator |
| Dimension (W x L x H) | Controller Board: 140 x 85 x 15.4 mm OSD Board (VOB1079D): 150 x 16 x 8.7mm |
| Plug & Play | DDC 2B, VESA DPMS |
| Option | RS232 Control. Illuminance(Light) Sensor(ADC Type) |
| Special Features | Ultra Low Power RS232&I2C&GPIO Control Support OGC&OCC Support OSD Rotation (0°/90°/180°/270°) Function Display FLIP/MIRROR/180° Function Remote control |
| Applications | Monitor/Game Middle end Board |
VCB1423 NEW
RoHS compliant
| Model No. | VCB1423 |
|---|---|
| Main Chipset | REALTEK RTD2556QR |
| Input / Output Resolution | VGA (640x480) to WUXGA (1920x1200) |
| Input Interface | HDMI, DP |
| Output Interface | e-DP1.1(HBR1) or LVDS 2ch |
| Panel Power | 3.3V/5V/12V |
| AUDIO | 10W(8ohm) x 2ch |
| Power Input | 12V/24V DC, External SMPS available |
| Compatibility | VESA Standard, Mac |
| User Control(OSD) | OSD Menu, AUTO adjust-configure, 7Keys, 2 LED Indicator |
| Dimension (W x L x H) | Controller Board: 140 x 85 x 15.4 mm OSD Board (VOB1079D): 150 x 16 x 8.7mm |
| Plug & Play | DDC 2B, VESA DPMS |
| Option | |
| Special Features | Ultra Low Power RS232&I2C&GPIO Control Support OGC&OCC Support OSD Rotation (0°/90°/180°/270°) Function Display FLIP/MIRROR/180° Function Remote control |
| Applications | Monitor/Game Middle end Board |
VCB1504L
RoHS compliant
| Model No. | VCB1504L |
|---|---|
| Main Chipset | MSTAR MST8757T |
| Input / Output Resolution | XGA to QHD(2560x1440) / WQXGA(2560x1600) QXGA(2048x1536) / WFHD(2560x1080) FHD(1920x1080)120HZ |
| Input Interface | DP, DVI-D, HDMI |
| Output Interface | LVDS 4ch, 120HZ FRC |
| Panel Power | 5V/10V/12V |
| AUDIO | No Support |
| Power Input | 12V/24V DC, External SMPS available →Input power can be selected by jumper setting |
| Compatibility | VESA Standard, Mac |
| User Control(OSD) | OSD Menu, 2 Languages, AUTO adjust-configure, 7Keys, 1 LED Indicator |
| Dimension (W x L x H) | Controller Board: 156 x 110 x 23mm OSD Board (VOB1079D): 150 x 16 x 8.7mm |
| Plug & Play | DDC 2B, VESA DPMS |
| Special Features | 27”/29”/30” (QHD/WQXGA/QXGA/WFHD) PANEL ex) LM270WQ1/WQ2/WQ3, LTM270DL02, LM290WW1, LM300WQ5, LM300WQ6, NL204153AC21-09, etc. FHD 120HZ PANEL Support ex)LC420WUD/470WUD, LTA400HF12/460HJ05/550HJ05, etc. |
| Applications | Monitor/Gaming High end Board |
VCB1520
RoHS compliant
| Model No. | VCB1520 |
|---|---|
| Main Chipset | MSTAR MST6849XP |
| Input / Output Resolution | XGA to WUXGA(1920x1200) |
| Input Interface | 2HDMI, USB(MPEG,JPEG,MP3), SPDIF |
| Output Interface | LVDS (6/8/10bit) 1ch/2ch |
| Speak Out | 8W x 2ch(8ohm) |
| Panel Power | 3.3V/5V/12V/15V/18V |
| Power Input | 12V DC |
| Compatibility | VESA Standard, Mac |
| User Control(OSD) | OSD Menu, 5 Languages, AUTO adjust-configure, 7 Keys, 2 LED Indicator |
| Dimension (W x L x H) | Controller Board: 110 x 85 x 15mm OSD Board (VOB1079D): 150 x 16 x 8.9mm Illuminance Sensor Board(VSBLIGHT): 30 x 20 x 5.2mm Temperature Sensor Board(VSBTEMP): 30 x 20 x 5.2mm |
| Plug & Play | DDC 2B, VESA DPMS |
| Option | RS232/Remote Control |
| Special Features | 3D Comb-filter VIDEO DECODER De-Interlacing Block Flip & Mirror Image/OSD (H/V) All supporting LCD Panel illuminance / Temperature Sensor(I2C Type), FAN Control IR IN/OUT Connector Ready F/W Update by USB Port 5V Power Output |
| Applications | Industrial / Medical / Military High end Board |
VCB1521
RoHS compliant
| Model No. | VCB1521 | |
|---|---|---|
| Main Chipset | MSTAR MST6849XP | |
| Input / Output Resolution | XGA to WUXGA(1920x1200) | |
| Input Interface | RGB, DVI, HDMI, Audio In USB(MPEG,JPEG,MP3) – Option Board | |
| Output Interface | LVDS (6/8/10bit) 1ch/2ch | |
| Speak Out | 8W x 2ch(8ohm) | |
| Panel Power | 3.3V/5V/12V | |
| Power Input | 12V DC | |
| Compatibility | VESA Standard, Mac | |
| User Control(OSD) | OSD Menu, 5 Languages, AUTO adjust-configure, 7 Keys, 2 LED Indicator | |
| Dimension (W x L x H) | Controller Board: 125 x 90x 15mm OSD Board (VOB1079D): 150 x 16 x 8.9mm Illuminance Sensor Board(VSBLIGHT): 30 x 20 x 5.2mm Temperature Sensor Board(VSBTEMP): 30 x 20 x 5.2mm |
|
| Plug & Play | DDC 2B, VESA DPMS | |
| Option | RS232/Remote Control | |
| Special Features | 3D Comb-filter VIDEO DECODER De-Interlacing Block Flip & Mirror Image/OSD (H/V) All supporting LCD Panel illuminance / Temperature Sensor(I2C Type), FAN Control F/W Update by USB (Wafer Option) 5V Power Output | |
| Applications | IIndustrial / Medical / Military High end Board |
VCB1531 NEW
CVBS / 3Gb / HD/SD-SDI(AHD) Monitor Board
| Model No. | VCB1531 | |
|---|---|---|
| Main Chipset | Mstar MST9121Q1+ Gennum GS2971A/GS2988 | |
| Input / Output Resolution | CVBS(NTSC) / AHD (FHD 30Hz) / SDI (FHD 60Hz), Panel (VGA to WUXGA_1920x1200) |
|
| Input Interface | CVBS / AHD / SDI - BNC Jack, USB-A - For F/W Up-date by USB memory stick Phone Jack - For White balance Calibration | |
| Output Interface | CVBS / AHD / SDI - BNC Jack LVDS 2ch |
|
| Panel Power | 3.3V/5V/12V | |
| Power Input | 24V DC | |
| Compatibility | VESA Standard, Mac | |
| User Control(OSD) | OSD Menu, AUTO adjust-configure, 7Keys, 2 LED Indicator |
|
| Dimension (W x L x H) | Controller Board: 170 x 132 x 16mm OSD Board (VOB1079D): 150 x 16 x 8.7mm |
|
| Plug & Play | DDC 2B, VESA DPMS | |
| Special Features | Automatic rate detection 3G/HD/SD-SDI, AHD 3-D Comb filter and Noise Reduction adoption 1 De-Interlacing Block DDC/CI Support RS-232 & I2C & GPIO Support FAN Control Support Remote Control Support | |
| Applications | 3Gb/HD/SD-SDI(AHD) Monitor Main board | s
