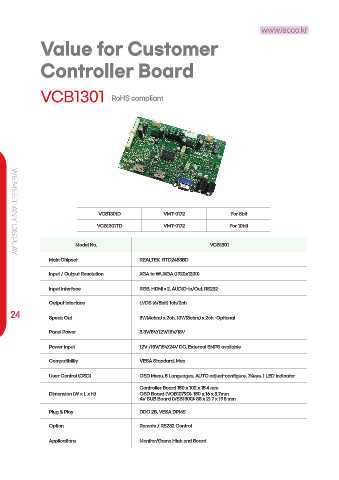

Value for Customer
Controller Board
VCB1301 RoHS compliant
VCB1301D VMT-0172 For 8bit
VCB1301TD VMT-0172 For 10bit
Model No. VCB1301
WE MEET ANY DISPLA Y
Main Chipset REALTEK RTD2483BD
Input / Output Resolution XGA to WUXGA (1920x1200)
Input Interface RGB, HDMIⅹ2, AUDIO-In/Out, RS232
Output Interface LVDS (6/8bit) 1ch/2ch
24 Speak Out 3W(4ohm) x 2ch, 10W(8ohm) x 2ch -Optional
Panel Power 3.3V/5V/12V/15V/18V
Power Input 12V /15V/18V/24V DC, External SMPS available
Compatibility VESA Standard, Mac
User Control (OSD) OSD Menu, 5 Languages, AUTO adjust-configure, 7Keys, 1 LED Indicator
Controller Board 150 x 102 x 15.4 mm
Dimension (W x L x H) OSD Board (VOB1079D): 150 x 16 x 8.7mm
AV SUB Board (VSB1300): 85 x 21.7 x 19.5 mm
Plug & Play DDC 2B, VESA DPMS
Option Remote / RS232 Control
Applications Monitor/Game High end Board
