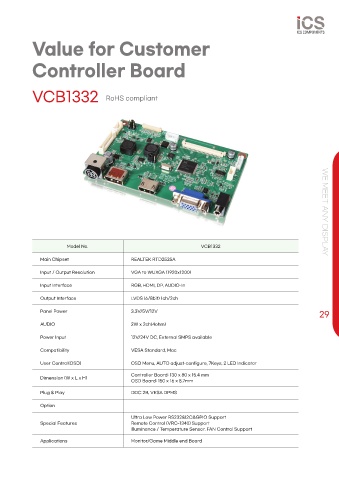

Value for Customer
Controller Board
VCB1332 RoHS compliant
Model No. VCB1332 WE MEET ANY DISPLA Y
Main Chipset REALTEK RTD2525A
Input / Output Resolution VGA to WUXGA (1920x1200)
Input Interface RGB, HDMI, DP, AUDIO-In
Output Interface LVDS (6/8bit) 1ch/2ch
Panel Power 3.3V/5V/12V
29
AUDIO 2W x 2ch(4ohm)
Power Input 12V/24V DC, External SMPS available
Compatibility VESA Standard, Mac
User Control(OSD) OSD Menu, AUTO adjust-configure, 7Keys, 2 LED Indicator
Controller Board: 130 x 80 x 15.4 mm
Dimension (W x L x H)
OSD Board: 150 x 16 x 8.7mm
Plug & Play DDC 2B, VESA DPMS
Option
Ultra Low Power RS232&I2C&GPIO Support
Special Features Remote Control (VRC-1340) Support
Illuminance / Temperature Sensor, FAN Control Support
Applications Monitor/Game Middle end Board
