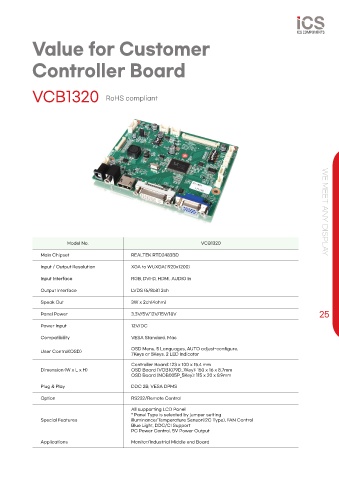

Page 25 - ICS Components

Value for Customer

Controller Board

VCB1320 RoHS compliant

Model No. VCB1320 WE MEET ANY DISPLA Y
Main Chipset REALTEK RTD2483BD

Input / Output Resolution XGA to WUXGA(1920x1200)

Input Interface RGB, DVI-D, HDMI, AUDIO In
Output Interface LVDS (6/8bit) 2ch

Speak Out 3W x 2ch(4ohm)
Panel Power 3.3V/5V/12V/15V/18V 25

Power Input 12V/DC

Compatibility VESA Standard, Mac
OSD Menu, 5 Languages, AUTO adjust-configure,
User Control(OSD)
7Keys or 5Keys, 2 LED Indicator
Controller Board: 123 x 100 x 15.4 mm
Dimension (W x L x H) OSD Board (VOB1079D_7Key): 150 x 16 x 8.7mm
OSD Board (NOB005P_5Key): 115 x 20 x 8.9mm
Plug & Play DDC 2B, VESA DPMS

Option RS232/Remote Control
All supporting LCD Panel
* Panel Type is selected by jumper setting
Special Features illuminance/Temperature Sensor(I2C Type), FAN Control
Blue Light, DDC/CI Support
PC Power Control, 5V Power Output
Applications Monitor/Industrial Middle end Board
