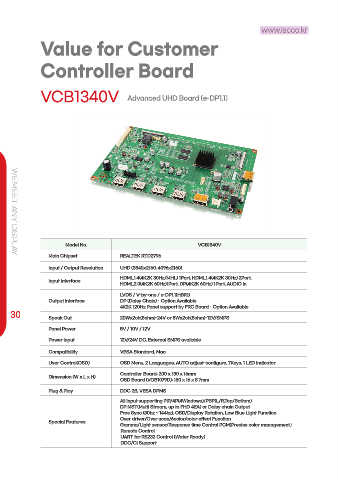

Controller Board

VCB1340V Advanced UHD Board (e-DP1.1)

Model No. VCB1340V

Main Chipset REALTEK RTD2796
WE MEET ANY DISPLA Y
Input / Output Resolution UHD (3840x2160, 4096x2160)
HDMI_1.4(4K2K 30Hz/MHL) 1Port, HDMI_1.4(4K2K 30Hz) 2Port,
Input Interface
HDMI_2.0(4K2K 60Hz)1Port, DP(4K2K 60Hz) 1Port, AUDIO In
LVDS / V-by-one / e-DP1.1(HBR1)
Output Interface DP (Daisy Chain) - Option Available
4K2K 120Hz Panel support by FRC Board - Option Available
30 Speak Out 20Wx2ch(8ohm)-24V or 8Wx2ch(8ohm)-12V/SMPS

Panel Power 5V / 10V / 12V
Power Input 12V/24V DC, External SMPS available
Compatibility VESA Standard, Mac

User Control(OSD) OSD Menu, 2 Languages, AUTO adjust-configure, 7Keys, 1 LED Indicator
Controller Board: 200 x 130 x 16mm
Dimension (W x L x H)
OSD Board (VOB1079D): 150 x 16 x 8.7mm
Plug & Play DDC 2B, VESA DPMS
All input supporting PIP/4P(4Windows)/PBP(L/R,Top/Bottom)
DP MST(Multi Stream, up to FHD 4EA) or Daisy chain Output
Free Sync (30hz ~ 144hz), OSD/Display Rotation, Low Blue Light Function
Over driver/Over scan/6color/color effect Function
Special Features
Gamma/Light sensor/Response time Control PCM(Precise color management)
Remote Control
UART for RS232 Control (Wafer Ready)
DDC/CI Support
