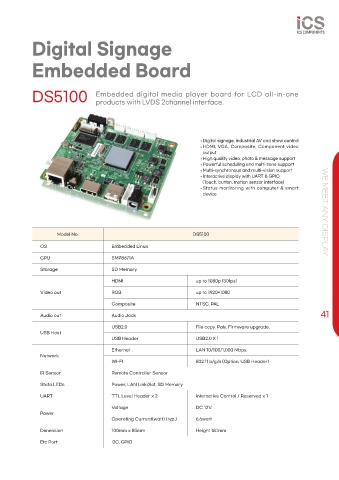

Page 41 - ICS Components

Digital Signage

Embedded Board

DS5100 Embedded digital media player board for LCD all-in-one
products with LVDS 2channel interface.

• Digital signage, industrial AV and show control
• HDMI, VGA, Composite, Component video
output
• High quality video, photo & message support
• Powerful scheduling and multi-zone support
• Multi-synchronous and multi-vision support
• Interactive display with UART & GPIO
(Touch, button, motion sensor interface)

• Status monitoring with computer & smart
device WE MEET ANY DISPLA Y

Model No. DS5100

OS Embedded Linux
CPU SMP8671A

Storage SD Memory
HDMI up to 1080p (30fps)

Video out RGB up to 1920×1080
Composite NTSC, PAL

Audio out Audio Jack 41
USB2.0 File copy, Paly, Firmware upgrade.
USB Host
USB Header USB2.0 X 1
Ethernet LAN 10/100/1,000 Mbps
Network
WI-FI 802.11 b/g/n (Option, USB Header)
IR Sensor Remote Controller Sensor

Stata LEDs Power, LAN Link/Act, SD Memory
UART TTL Level Header x 2 Interactive Control / Reserved x 1

Voltage DC 12V
Power
Operating Current(watt) (typ.) 6.6watt

Dimension 100mm x 85mm Height 18.1mm
Etc Port I2C, GPIO
