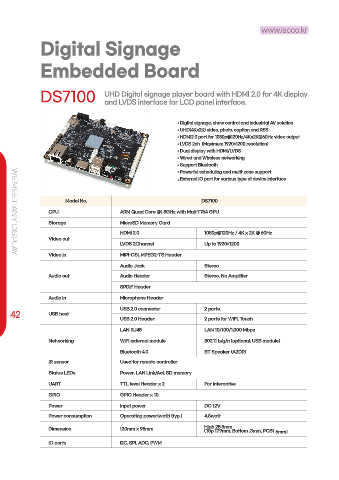

Digital Signage

Embedded Board

DS7100 UHD Digital signage player board with HDMI 2.0 for 4K display
and LVDS interface for LCD panel interface.

• Digital signage, show control and industrial AV solution
• UHD(4Kx2K) video, photo, caption and RSS
• HDMI2.0 port for 1080p@120Hz/4Kx2K@60Hz video output
• LVDS 2ch. (Maximum 1920×1200 resolution)
• Dual display with HDMI/LVDS
• Wired and Wireless networking
• Support Bluetooth
• Powerful scheduling and multi-zone support
• External IO port for various type of device interface

Model No. DS7100
CPU ARM Quad Core @1.8GHz with Mali-T764 GPU
Storage MicroSD Memory Card

HDMI 2.0 1080p@120Hz / 4K x 2K @ 60Hz
Video out
LVDS 2Channel Up to 1920×1200
Video in MIPI-CSI, MPEG2-TS Header
WE MEET ANY DISPLA Y
Audio Jack Stereo
Audio out Audio Header Stereo, No Amplifier
SPDIF Header

Audio in Microphone Header
USB 2.0 connector 2 ports
42 USB host
USB 2.0 Header 2 ports for WiFi, Touch
LAN RJ45 LAN 10/100/1,000 Mbps
Networking WiFi external module 802.11 b/g/n (optional, USB module)

Bluetooth 4.0 BT Speaker (A2DP)
IR sensor Used for remote controller
Status LEDs Power, LAN Link/Act, SD memory

UART TTL level Header x 2 For interactive
GPIO GPIO Header x 10
Power Input power DC 12V

Power consumption Operating power(watt) (typ.) 4.8watt
High 25.5mm
Dimension 120mm x 95mm
(Top 17.9mm, Bottom ,3mm, PCB1.6mm)
IO ports I2C, SPI, ADC, PWM
