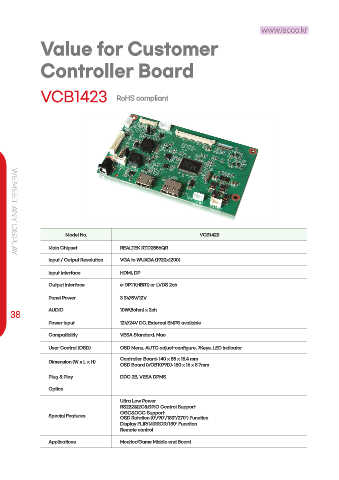

Value for Customer
Controller Board
VCB1423 RoHS compliant
Model No. VCB1423
Main Chipset REALTEK RTD2556QR
WE MEET ANY DISPLA Y
Input / Output Resolution VGA to WUXGA (1920x1200)
Input Interface HDMI, DP
Output Interface e-DP1.1(HBR1) or LVDS 2ch
Panel Power 3.3V/5V/12V
AUDIO 10W(8ohm) x 2ch
38
Power Input 12V/24V DC, External SMPS available
Compatibility VESA Standard, Mac
User Control (OSD) OSD Menu, AUTO adjust-configure, 7Keys, LED Indicator
Controller Board: 140 x 85 x 15.4 mm
Dimension (W x L x H)
OSD Board (VOB1079D): 150 x 16 x 8.7mm
Plug & Play DDC 2B, VESA DPMS
Option
Ultra Low Power
RS232&I2C&GPIO Control Support
OGC&OCC Support
Special Features
OSD Rotation (0°/90°/180°/270°) Function
Display FLIP/MIRROR/180° Function
Remote control
Applications Monitor/Game Middle end Board
