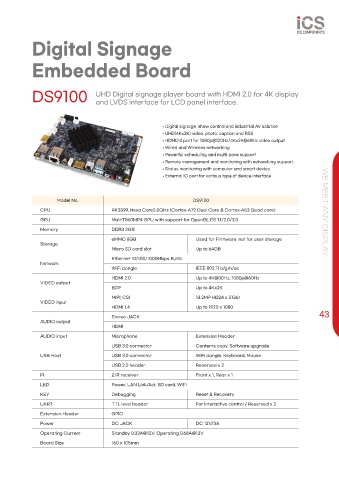

Page 43 - ICS Components

Digital Signage

Embedded Board

DS9100 UHD Digital signage player board with HDMI 2.0 for 4K display
and LVDS interface for LCD panel interface.

• Digital signage, show control and industrial AV solution
• UHD(4Kx2K) video, photo, caption and RSS
• HDMI2.0 port for 1080p@120Hz/4Kx2K@60Hz video output
• Wired and Wireless networking
• Powerful scheduling and multi-zone support
• Remote management and monitoring with networking support.
• Status monitoring with computer and smart device
• External IO port for various type of device interface

Model No. DS9100
CPU RK3399, Hexa Core2.0GHz (Cortex-A72 Dual Core & Cortex-A53 Quad core) WE MEET ANY DISPLA Y
GPU Mali-T860MP4 GPU with support for OpenGL ES 1.1/2.0/3.0
Memory DDR3 2GB
eMMC 8GB Used for Firmware, not for user storage
Storage
Micro SD card slot Up to 64GB
Ethernet 10/100/1000Mbps RJ45
Network
WiFi dongle IEEE 802.11 b/g/n/ac
HDMI 2.0 Up to 4K@30Hz, 1080p@60Hz
VIDEO output
EDP Up to 4Kx2K
MIPI_CSI 13.2MP (4224 x 3136)
VIDEO input
HDMI 1.4 Up to 1920 x 1080
43
Stereo JACK
AUDIO output
HDMI
AUDIO input Microphone Extension Header
USB 3.0 connector Contents copy, Software upgrade

USB Host USB 3.0 connector WiFi dongle, Keyboard, Mouse
USB 2.0 header Reserved x 2
IR 2 IR receiver Front x 1, Rear x 1
LED Power, LAN Link/Act, SD card, WiFi
KEY Debugging Reset & Recovery
UART TTL level header For Interactive control / Reserved x 2
Extension Header GPIO
Power DC JACK DC 12V/3A
Operating Current Standby 0.33A@12V, Operating 0.68A@12V

Board Size 160 x 105mm
