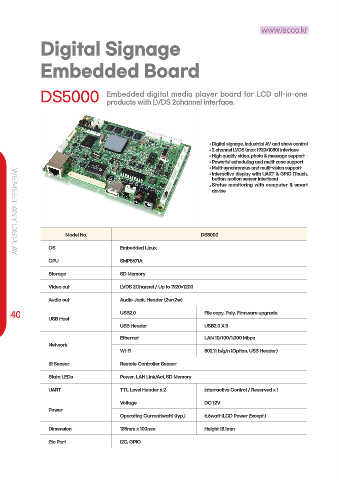

Page 40 - ICS Components

www.iscco.kr

Digital Signage

Embedded Board

DS5000 Embedded digital media player board for LCD all-in-one
products with LVDS 2channel interface.

• Digital signage, industrial AV and show control
• 2 channel LVDS (max 1920×1080) interface
• High quality video, photo & message support
• Powerful scheduling and multi-zone support
• Multi-synchronous and multi-vision support
• Interactive display with UART & GPIO (Touch,
button, motion sensor interface)
• Status monitoring with computer & smart
device

Model No. DS5000

OS Embedded Linux
WE MEET ANY DISPLA Y
CPU SMP8671A
Storage SD Memory

Video out LVDS 2Channel / Up to 1920×1200

Audio out Audio Jack, Header (2w+2w)

40 USB2.0 File copy, Paly, Firmware upgrade.
USB Host
USB Header USB2.0 X 3

Ethernet LAN 10/100/1,000 Mbps
Network
WI-FI 802.11 b/g/n (Option, USB Header)

IR Sensor Remote Controller Sensor

Stata LEDs Power, LAN Link/Act, SD Memory

UART TTL Level Header x 2 Interractive Control / Reserved x 1

Voltage DC 12V
Power
Operating Current(watt) (typ.) 6.6watt (LCD Power Except.)
Dimension 135mm x 100mm Height 18.1mm

Etc Port I2C, GPIO
