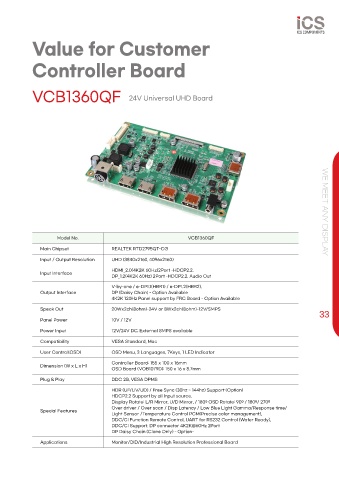

Page 33 - ICS Components

Value for Customer

Controller Board

VCB1360QF 24V Universal UHD Board

Model No. VCB1360QF WE MEET ANY DISPLA Y
Main Chipset REALTEK RTD2795QT-CG
Input / Output Resolution UHD (3840x2160, 4096x2160)

HDMI_2.0(4K2K 60Hz)2Port -HDCP2.2,
Input Interface
DP_1.2(4K2K 60Hz) 2Port -HDCP2.2, Audio Out
V-by-one / e-DP1.1(HBR1) / e-DP1.2(HBR2),
Output Interface DP (Daisy Chain) - Option Available
4K2K 120Hz Panel support by FRC Board - Option Available
Speak Out 20Wx2ch(8ohm)-24V or 8Wx2ch(8ohm)-12V/SMPS
33
Panel Power 10V / 12V
Power Input 12V/24V DC, External SMPS available
Compatibility VESA Standard, Mac

User Control(OSD) OSD Menu, 3 Languages, 7Keys, 1 LED Indicator
Controller Board: 155 x 100 x 16mm
Dimension (W x L x H)
OSD Board (VOB1079D): 150 x 16 x 8.7mm
Plug & Play DDC 2B, VESA DPMS
HDR (UF/UV/UD) / Free Sync (30hz ~ 144hz) Support (Option)
HDCP2.2 Support by all Input source,
Display Rotate: L/R Mirror, U/D Mirror, / 180º OSD Rotate: 90º / 180º/ 270º
Over driver / Over scan / Disp Latency / Low Blue Light Gamma/Response time/
Special Features
Light Sensor /Temperature Control PCM(Precise color management),
DDC/CI Function Remote Control, UART for RS232 Control (Wafer Ready),
DDC/CI Support, DP connector 4K2K@60Hz 2Port
DP Daisy Chain (Clone Only) - Option-
Applications Monitor/DID/Industrial High Resolution Professional Board
