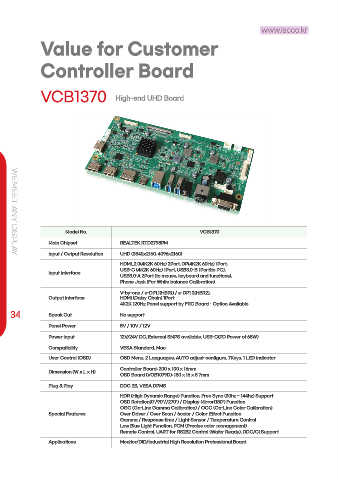

Page 34 - ICS Components
P. 34
www.iscco.kr
Value for Customer
Controller Board
VCB1370 High-end UHD Board
Model No. VCB1370
Main Chipset REALTEK RTD2798PM
Input / Output Resolution UHD (3840x2160, 4096x2160)
WE MEET ANY DISPLA Y
HDMI_2.0(4K2K 60Hz) 2Port, DP(4K2K 60Hz) 1Port,
USB-C (4K2K 60Hz) 1Port, USB3.0-B 1Port(to PC),
Input Interface
USB3.0-A 2Port (to mouse, keyboard and functions),
Phone Jack (For White balance Calibration)
V-by-one / e-DP1.1(HBR1) / e-DP1.2(HBR2),
Output Interface HDMI (Daisy Chain) 1Port
4K2K 120Hz Panel support by FRC Board - Option Available
34 Speak Out No support
Panel Power 5V / 10V / 12V
Power Input 12V/24V DC, External SMPS available, USB-C(PD Power of 65W)
Compatibility VESA Standard, Mac
User Control (OSD) OSD Menu, 2 Languages, AUTO adjust-configure, 7Keys, 1 LED Indicator
Controller Board: 200 x 100 x 16mm
Dimension (W x L x H)
OSD Board (VOB1079D): 150 x 16 x 8.7mm
Plug & Play DDC 2B, VESA DPMS
HDR (High Dynamic Range) Function, Free Sync (30hz ~ 144hz) Support
OSD Rotation(0°/90°//270°) / Display Mirror(180°) Function
OGC (On-Line Gamma Calibration) / OCC (On-Line Color Calibration)
Special Features Over Driver / Over Scan / 6color / Color Effect Function
Gamma / Response time / Light Sensor / Temperature Control
Low Blue Light Function, PCM (Precise color management)
Remote Control, UART for RS232 Control (Wafer Ready), DDC/CI Support
Applications Monitor/DID/Industrial High Resolution Professional Board
