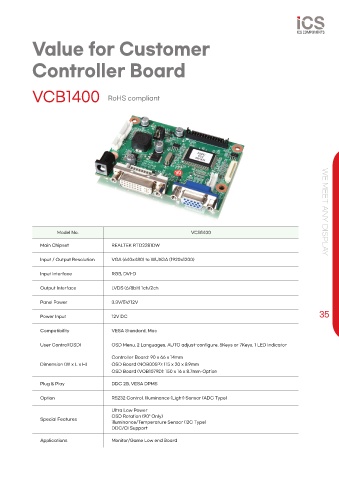

Value for Customer


            Controller Board





            VCB1400                    RoHS compliant




























                     Model No.                                      VCB1400                                       WE MEET ANY DISPLA Y

               Main Chipset             REALTEK RTD2281DW

               Input / Output Resolution  VGA (640x480) to WUXGA (1920x1200)


               Input Interface          RGB, DVI-D

               Output Interface         LVDS (6/8bit) 1ch/2ch

               Panel Power              3.3V/5V/12V
                                                                                                                 35
               Power Input              12V DC

               Compatibility            VESA Standard, Mac

               User Control(OSD)        OSD Menu, 2 Languages, AUTO adjust-configure, 5Keys or 7Keys, 1 LED Indicator

                                        Controller Board: 90 x 66 x 14mm
               Dimension (W x L x H)    OSD Board (NOB005P): 115 x 20 x 8.9mm
                                        OSD Board (VOB1079D): 150 x 16 x 8.7mm-Option

               Plug & Play              DDC 2B, VESA DPMS

               Option                   RS232 Control. Illuminance (Light) Sensor (ADC Type)

                                        Ultra Low Power
                                        OSD Rotation (90° Only)
               Special Features
                                        illuminance/Temperature Sensor (I2C Type)
                                        DDC/CI Support
               Applications             Monitor/Game Low end Board
